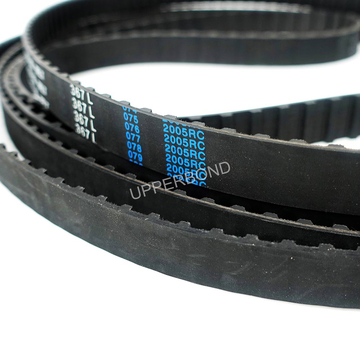

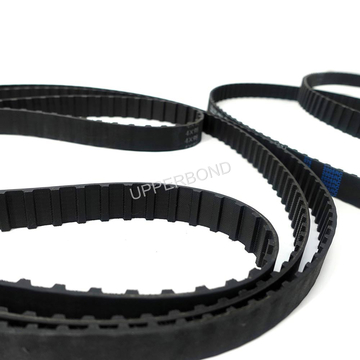

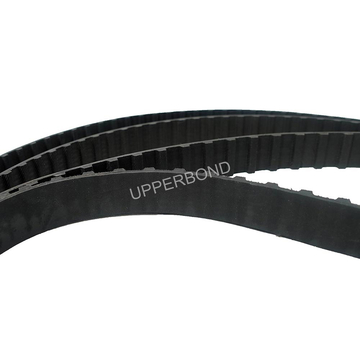

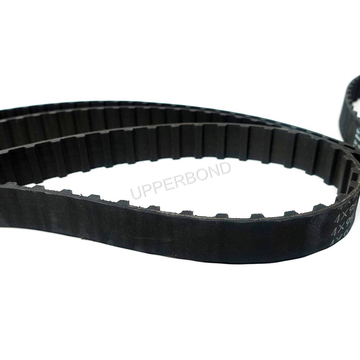

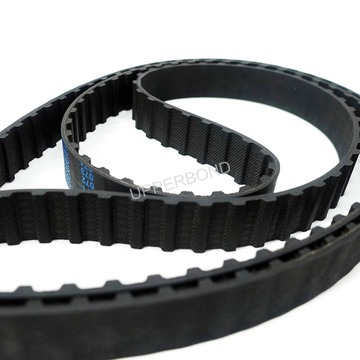

Transfer High Power Toothed Timing Belt for HLP2 Cigarette Machine

Brand UPPERBOND
Product Name Toothed Timing Belt
Feature High-power transmissions
Colour Black
Application Maker / Packer

Specification

No.	Specifications （Unit：mm）	Colour
1	47336	Black
2	39912	Black
3	39219	Black
4	39319	Black
5	36912	Black
6	38612	Black
7	37720	Black
8	35012	Black
9	312912	Black
10	35012	Black
11	210416	Black
12	414020	Black
13	49420	Black

No.	Specifications （Unit：mm）	Colour
1	47336	Black
2	39912	Black
3	39219	Black
4	39319	Black
5	36912	Black
6	38612	Black
7	37720	Black
8	35012	Black
9	312912	Black
10	35012	Black
11	210416	Black
12	414020	Black
13	49420	Black

Description

Timing Belt

Timing belts, toothed belts, cogged or cog belts, and synchronous belts are non-slipping mechanical drive belts. They are made as flexible belts with teeth moulded onto their inner surface. The belts run over matching toothed pulleys or sprockets. When correctly tensioned, these type of belts have no slippage, and are often used to transfer motion for indexing or timing purposes (hence their name). They are often used in lieu of chains or gears, so there is less noise and a lubrication bath is not necessary.

Toothed belts are used widely in mechanical devices, including cigarette machines, sewing machines, photocopiers and many others. A major use of toothed belts is as the timing belt used to drive the camshafts within an engine.

As toothed belts can deliver more power than a friction-drive belt, they are used for high-power transmissions.

Specifications

No.

Specifications

（Unit：mm）

Colour

4*73*36

Black

3*99*12

Black

3*92*19

Black

3*93*19

Black

3*69*12

Black

3*86*12

Black

3*77*20

Black

3*50*12

Black

3*129*12

Black

3*50*12

Black

2*104*16

Black

4*140*20

Black

4*94*20

Black

For need of any other specifications, contact with us for customization.

Machines Applicable

We provide toothed belt/ timing belt/ cogged belt/ cog belt/ synchronous belt for basically all types of cigarette making machines and cigarette packing machines. Yet for belts used in below makers and packers, we tend to reserve more in stock, samples and goods alike.

Maker Type

MK8/MK9

Protos(70/90/90E/100/1-1/1-9/2-1/2-2/M)

Passim(7000/8000/10000)

Packer Type

HLP2

SASIB(3000/6000)

GD(X1/X2/X2000/X3000/H1000/X6/X86)

For other types, makers and packers of higher speed or less common types, including MK9-5, MK10, GD121, GD121 Plus, GD121 Plus Plus, Passim 12000,GD2000, FOCKE350, FOCKE700,HLP1, please contact with us for a certain lead time and delivery details.
